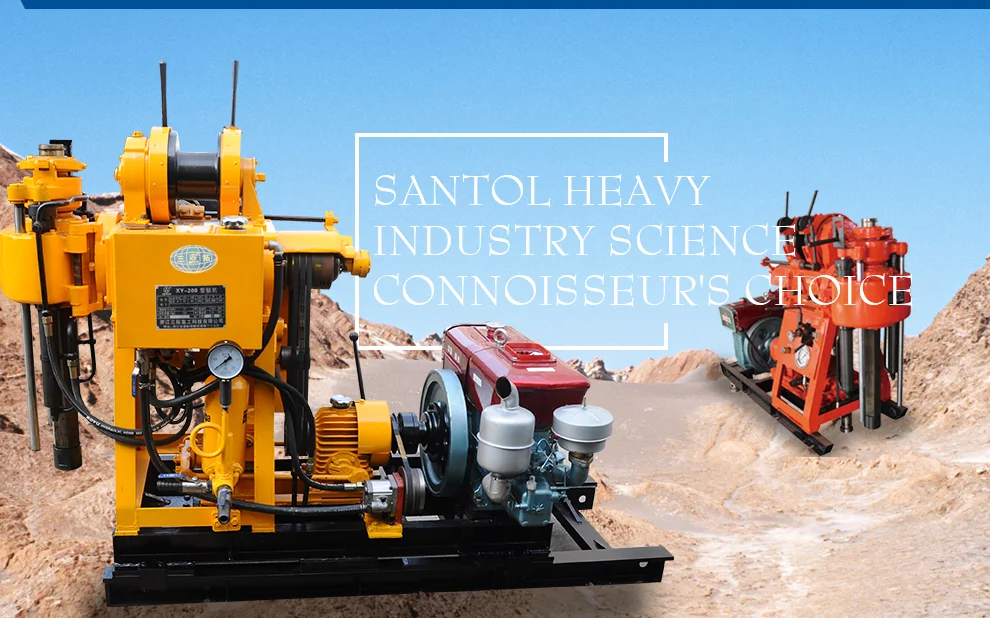

Quick Details

  • Condition: New
  • Type: Rotary Drilling Rig
  • Power Type: Diesel
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: SANTOL
  • Model Number: XY-1BT
  • Usage: Water Well
  • Voltage: Diesel Engine Driven
  • Power(W): 15KW
  • Dimension(L*W*H): 1700*780*1274mm
  • Weight: 500kg
  • Certification: ISO CE
  • Warranty: 12 Months
  • After-sales Service Provided: Engineers available to service machinery overseas

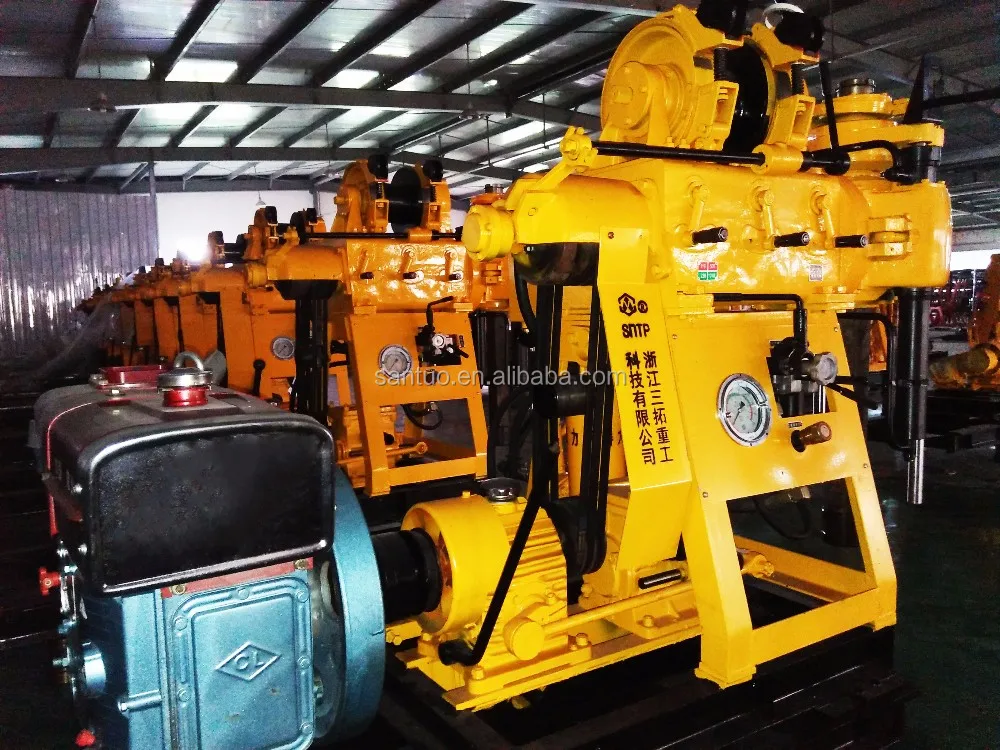

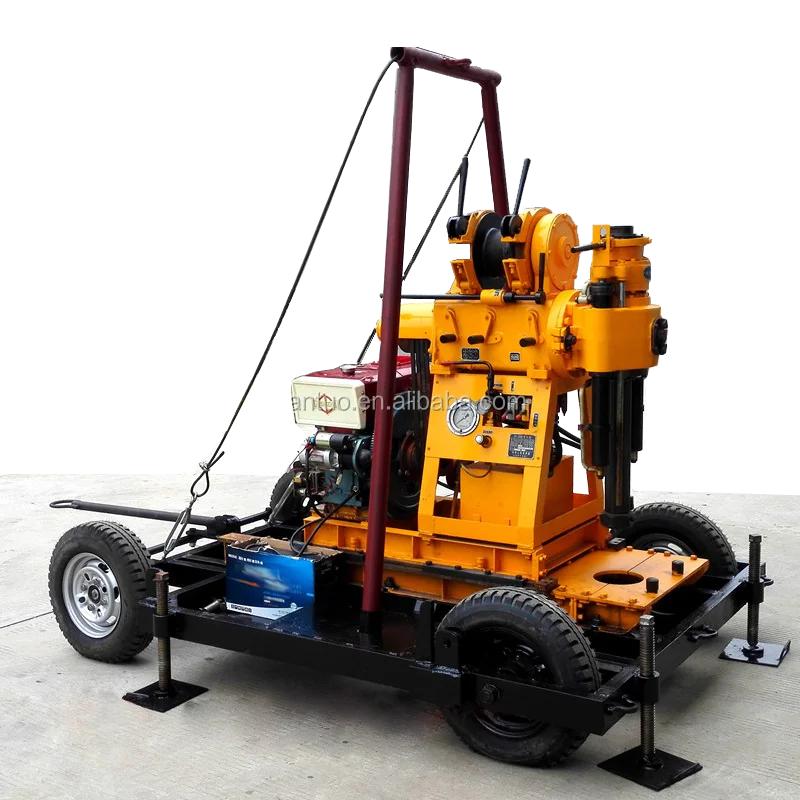

  • Product name: 150 m Truck mounted Hydraulic Portable Rotary tube well drilling rig
  • Drilling depth: 492 feet
  • Drilling rod diameter: 1.65 inch
  • Pilot hole diameter: 5.9 inch
  • Final hole diameter: 2.95 inch
  • Drilling angle: 90-75 degree
  • Oil pump model: YBC-20/125
  • Rated pressure of oil pump: 12.5 Mpa
  • Flow rate of oil pump: 8ml/r
  • Rated rotary speed of oil pump: 2000 r/min

Packaging & Delivery

Packaging Details Fumigation-free wooden case.
Delivery Time 7-15 days
Product Description

Product Application


150 m Truck mounted Hydraulic Portable Rotary tube well drilling rig is applied for:

Engineering geographical prospecting of railway, hydro-power, transportation, bridge, dam foundation and buildings, as well as rock core geological and physical survey drilling and water well drilling.


Drill rig
Hoist
Drilling Depth
500/300/230/100 feet
Lifting capacity (single rope)
15KN
Drill rod diameter
1.65 inch
Lifting rotating speed
18/36/84/168 r/min
Pilot Hole diameter
5.9 inch
Drum circle linear speed (2 layers)
32.8/65.3/144.3/288.3ft/min
Final Hole diameter
2.95 / 1.81 inch
Drum Diameter
5.51 inch
Drill angle
90-75 0
Wire rope diameter
0.37 inch
Moving stroke
13.78 inch
Wire rope length
114.8 feet
Weight
500kg
Brake diameter
9.92 inch
Dimension(L x W x H)
7.8 x 4.6 x 6.5 feet
Brake belt width
1.97 inch
Swivel head
Engine (Diesel or Electric motor)
Spindle speed (4-shift)
71/142/310/620 r/min
Diesel engine
S1115
Spindle stroke
17.71 inch
Rated power
16.2KW
Forward speed
13.2 ft /min
Rated speed
2200 r/min
Reverse speed
9.85 ft/min
Electric motor
Y160M-4
Spindle torque
15 KN
Rated power
11KW
Spindle lifting capacity
25 KN
Rated speed
1460 r/min

Main Features

The beam of spindle shell was changed into dual-guide rod to ensure the machine more durability.

1) It is used for small-scale grouting, blasting hole drilling and small-scale well drilling to reduce human work intensity.

2) Equipped with ball stuck clamping system to lock and release the drilling rod, reverse the rod without stopping drilling system.

3) Handles gathered for convenient operation.

4) On the hoist axle, the slid bearing was changed into ball bearing to avoid any burning damage when it is working.

5) The planetary gear supporting structure was adopted for the hoist, change the planetary gear supported by double point from single point, and improved the lifting capacity of the hoist.

6) small volume, light weight, easy to disassemble, sled bed frame for easy transportation, is very suitable for working in plain and mountain area.

Certifications
Detailed Images

Machine Parts

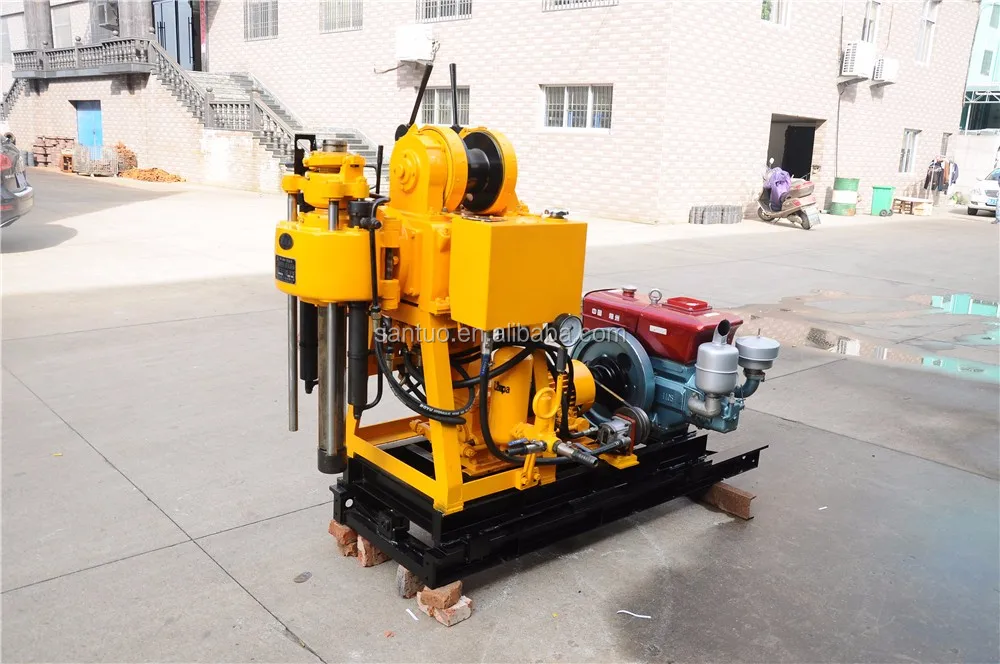

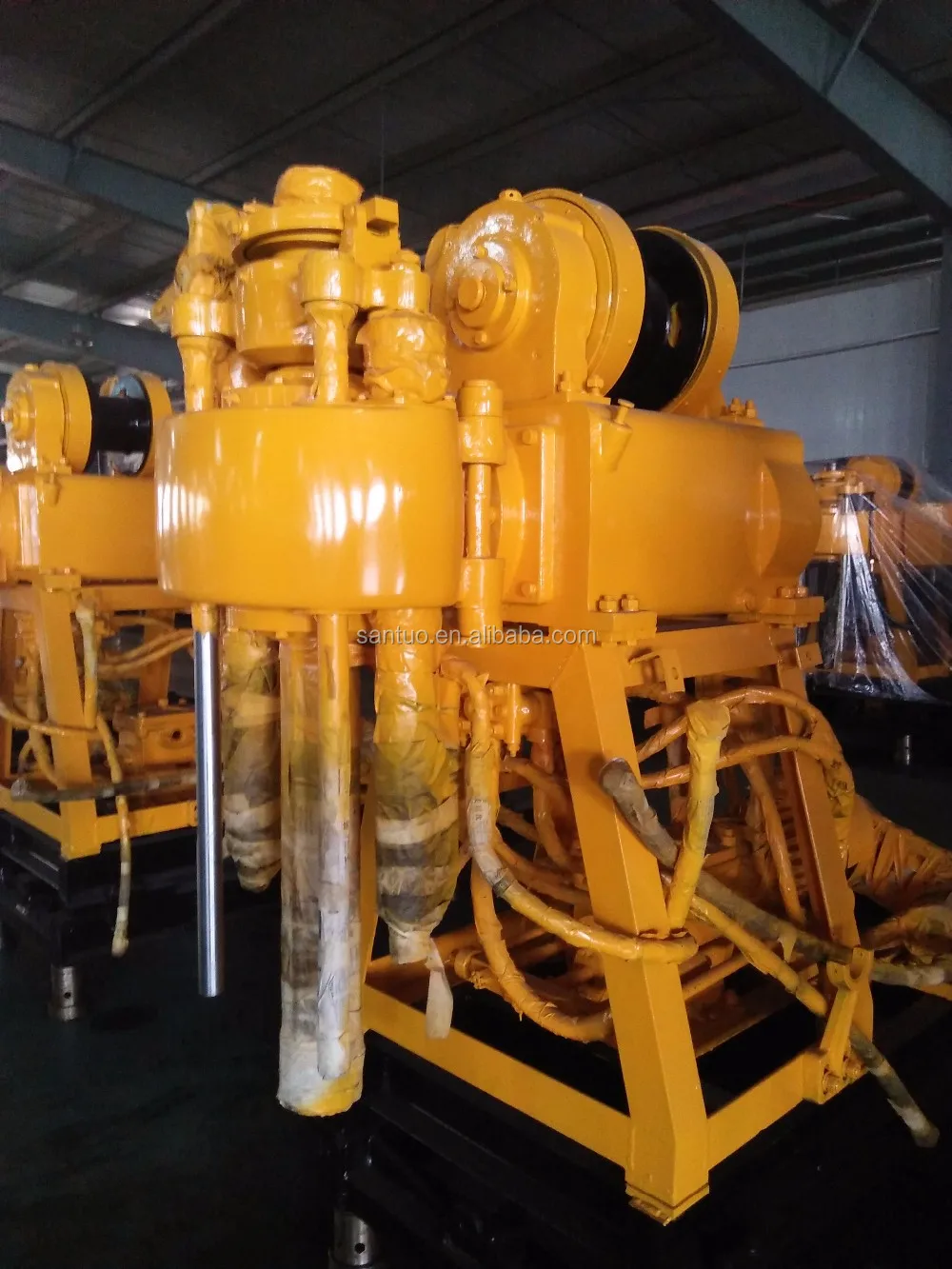

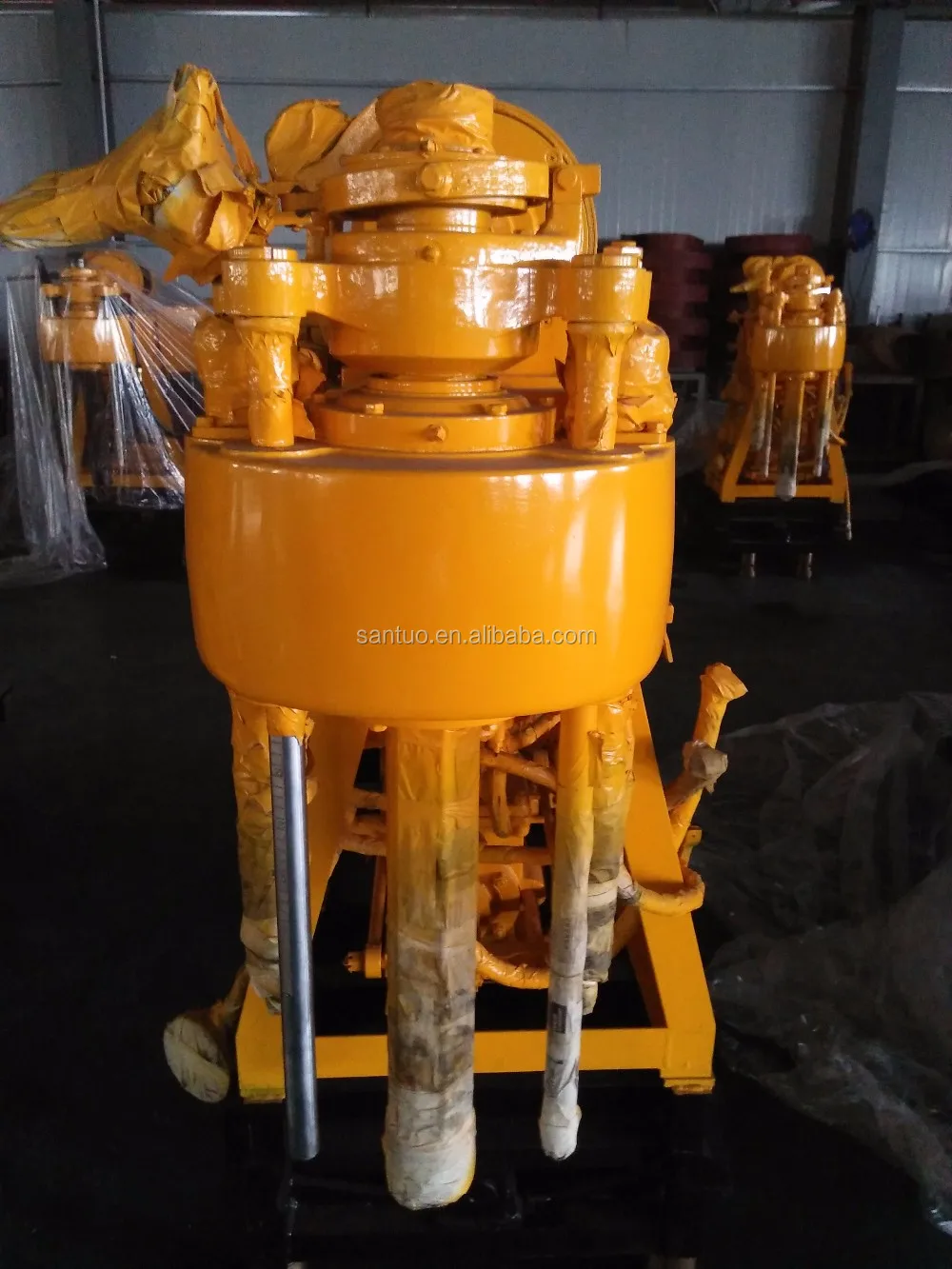

Name: Swivel head

Brand: Santol

Original: China

The swivel head equipped with ball stuck clamping system to lock and release the drilling rod, reverse the rod without stopping drilling system.

Main Features

Name: Water pump and Gear Reducer
Brand: Santol
Original: China
Compact structure: rig, water pump and engine are fixed on the same bed frame, takes a small occupation and easy to disassemble.

Machine Parts

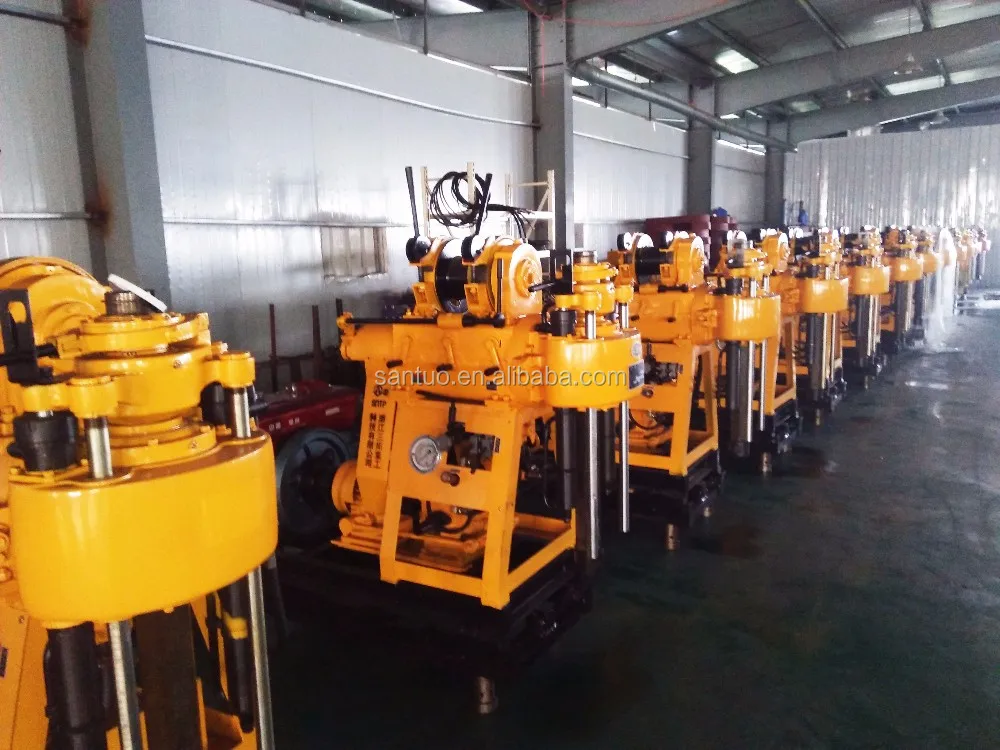

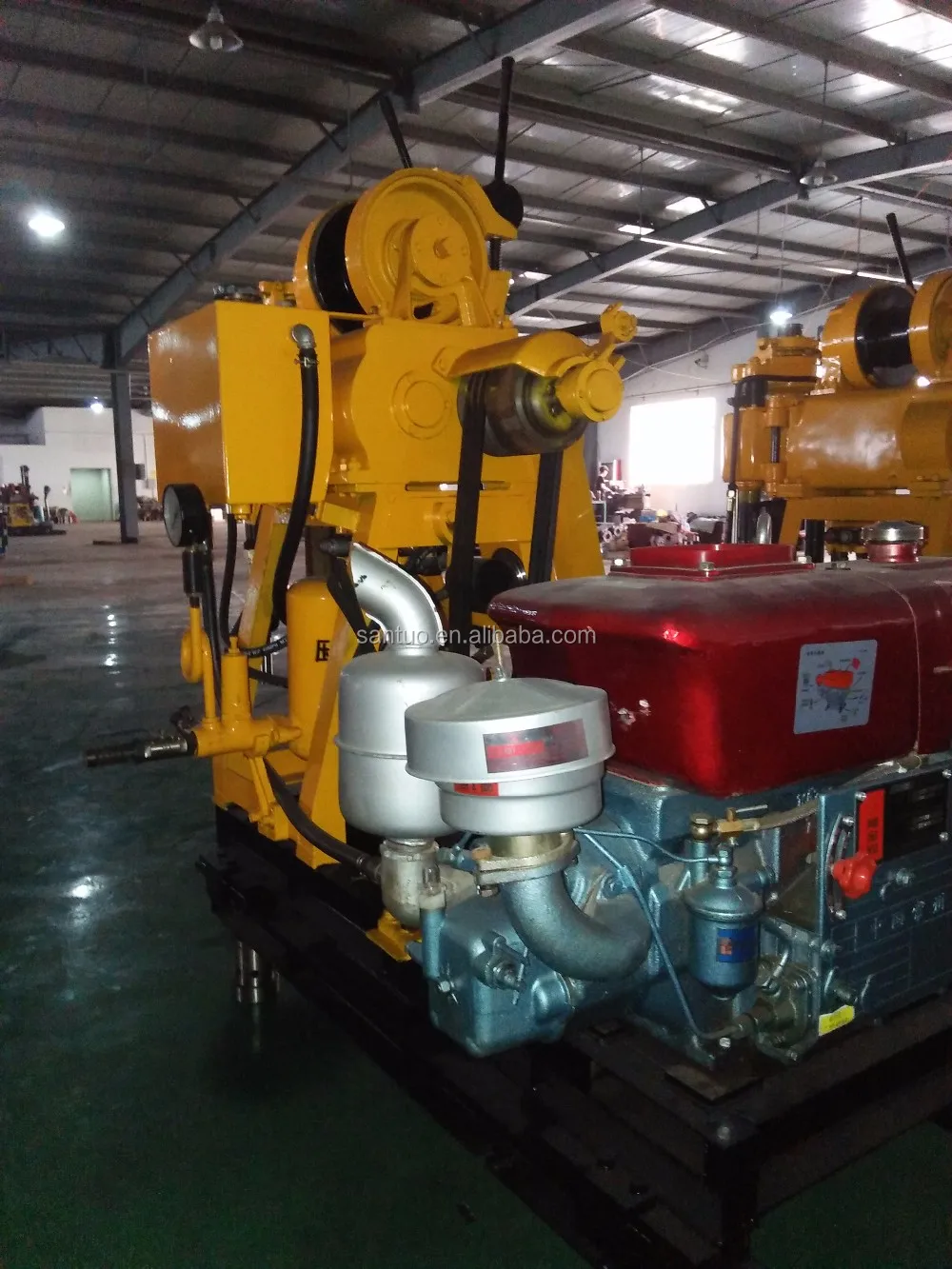

Name: Diesel
Modle: SZ1100
Original: China
A domestic famous engines, strong driving force, low fuel consumption, easy starting, mature technique and good interchangeability.

Main Features

Name: 2-layer bed frame
Brand: Santol
Original: China
All the main parts are mounted on the top bed, which makes the whole unit sliding on the base bed easily by hydraulic pressure system.

It is easy for transportation, very suitable for working in plain and mountain area.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

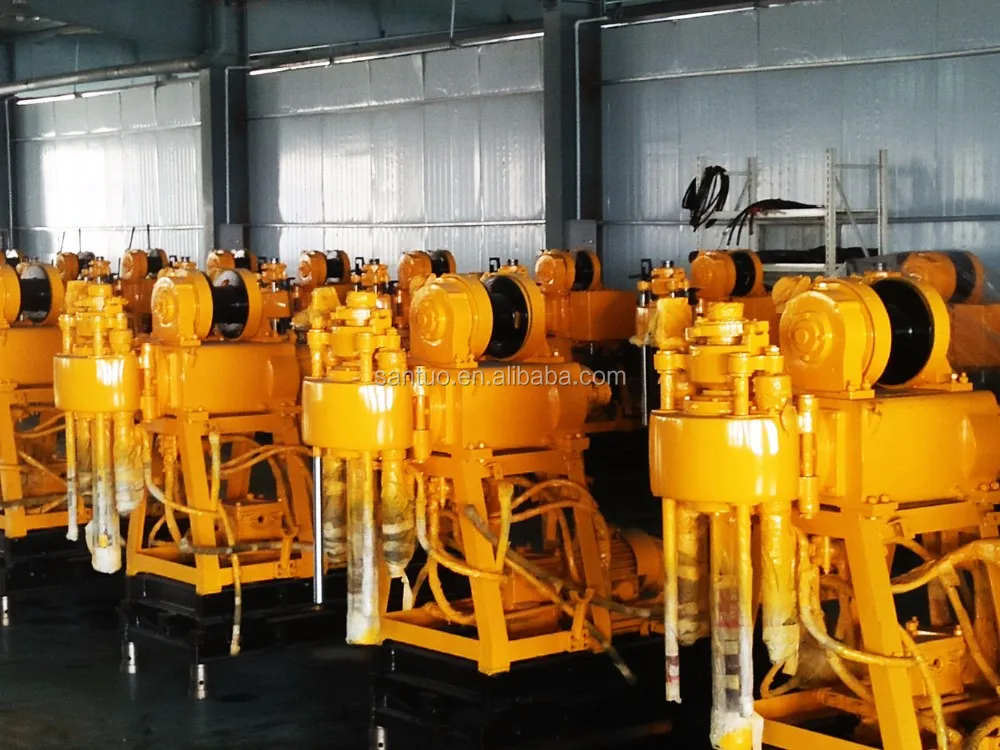

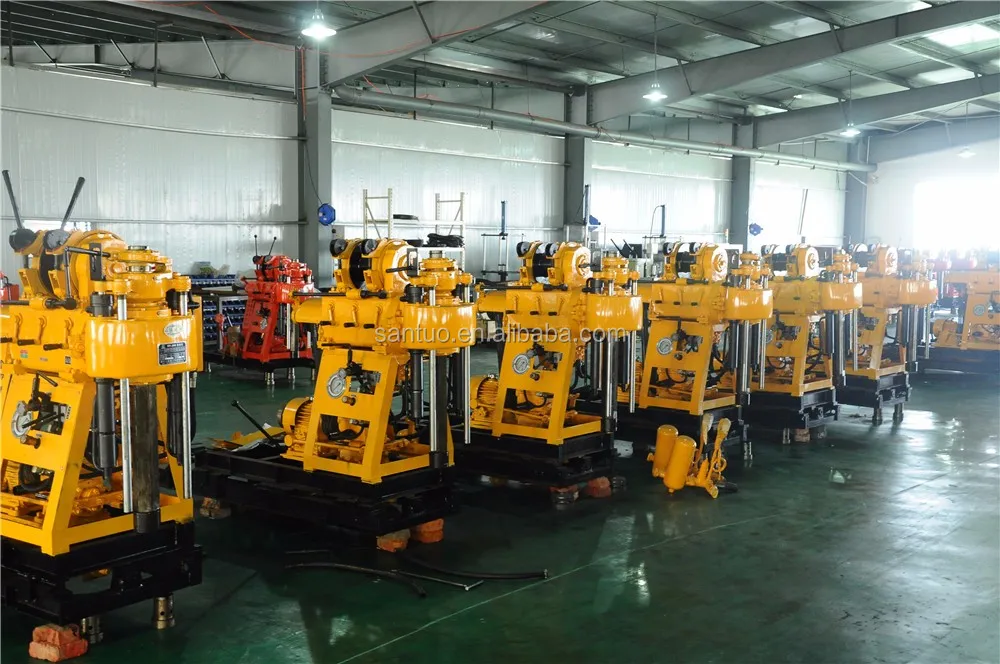

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

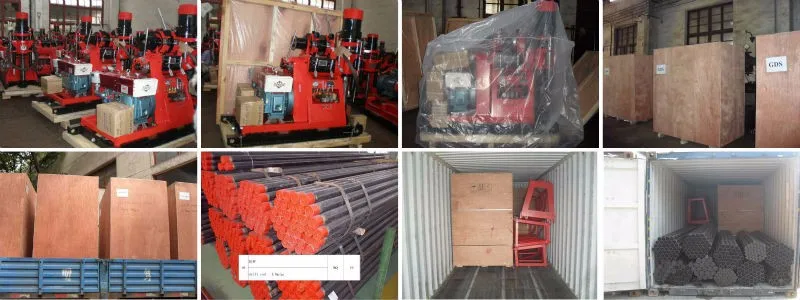

Packing & Delivery
